Ultrasonic Accessories

Ultrasonic Studs – 1/2-20, 3/8-24, M8, M12, M16 studs; Step Studs 1/2-20 to 3/8-24, and custom step studs.
Stack Grease to use between stack components OR…
Mylar’s to use between stack components: 1.5 x 1/2, 1.5 x 3/8, or 2 x 1/2, some special sizes.
Ultrasonic Vice
Pneumatic Film Feeder
Film to use between the horn and part to help with marking.
Torque Wrench to aid in getting the horn/booster/converter assembly together consistently.
Parts for ultrasonic welders; transducers, converters, boosters, valves, cylinders, and more.

Branson Replacement Converters

102 converter 182/184 V or P 450/900-watt 20 kHz power supply
103 converter 187P 1500-watt 20 kHz power supply
105 converter 188P 1800 watt 20 kHz power supply
108 converter 186P 1400-watt 20 kHz power supply
402 converter 182 & 184 V/P power supply also press models 8200 and 8400
502 converter 188P/1170P/1300P (with 501 or 851 actuators), Press models 5170, 8800, 930AE/AES with the 930M/MA power supply.
802 converter 186P power supply (with the 801 actuators) and model 8600 press. Can also be used as a heavy-duty 402 converter.
803 converter 187P power supply (with the 801 actuators) and the model 8700 press
902J (OEM: 101-135-047): 905, 910 D, M, or MA, 500- and 900 Series 1000-watt power supplies, and 910 IW or IW+ model presses.
922JA (OEM: 101-135-049): 920 D, M, or MA 900 Series 2000-watt power supplies and the 920IW or IW+ model presses
CJ20 (OEM: 101-135-059R): 2000 Series and 2000X and DCX series systems.
CR20 (OEM: 101-135-060R) for use with 2000 Series, 2000X and DCX series power supplies

CJ20 Branson Converter Replacement

Branson 922JA Converter — CJ20 Branson Converter Replacement

Dukane Replacement Converters

110-3168 Slim Line Transducer: Used in the following presses
110-3122 Heavy Duty Transducer: Used in the following presses: 43A250, 43A255, 43D255, 43E255, 43A260, and the 43B260

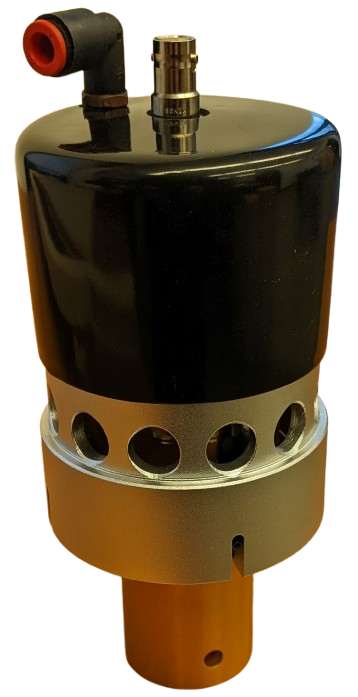

41C30 Heavy Duty Transducer: Used with probes, UltraSeries, DPC, 20kHz
40kHz transducer for presses or hand probes.

Dukane 110-3168 Transducer — 110-3168 Dukane Transducer Replacement

110-3122 Dukane Transducer Replacement — 110-3168 Dukane Transducer Replacement

Replacement Boosters

Heavy Duty Boosters fit both Branson and Dukane presses
Dukane: 43A250, 43A255, 43D255, 43E255, 43A260, and the 43B260
Branson 900 Series, 2000 Series, DCX
We manufacture them so you can take the rings off and replace the o-rings for maintenance.
We have a selection of pre-owned boosters in stock, please CALL us for pricing.

Works in either Branson or Dukane - Heavy Duty 1:1 Booster — 1:1 20kHz Booster in Titanium or Aluminum for Branson or Dukane

1:1.5 Booster in Titanium or Aluminum for Branson or Dukane — 1:1 20kHz Booster in Titanium or Aluminum for Branson or Dukane

Accessories for Ultrasonics

Ultrasonic Studs – 1/2-20, 3/8-24, M8, M12, M16 studs; Step Studs 1/2-20 to 3/8-24, and custom step studs.
Stack Grease to use between stack components OR…
Mylar’s to use between stack components: 1.5 x 1/2, 1.5 x 3/8, or 2 x 1/2, some special sizes.
Ultrasonic Vice
Pneumatic Film Feeder
Film to use between the horn and part to help with marking.
Torque Wrench to aid in getting the horn/booster/converter assembly together consistently.
Parts for ultrasonic welders; transducers, converters, boosters, valves, cylinders, and more.

Mylar washers for most size tooling. — Mylar washers for most size tooling. When you use washers, it prevents gauling or fretting of the surfaces between the converter / transducer and booster, but more between the booster and horn.

Step Studs — Mylar washers for most size tooling. When you use washers, it prevents gauling or fretting of the surfaces between the converter / transducer and booster, but more between the booster and horn.
